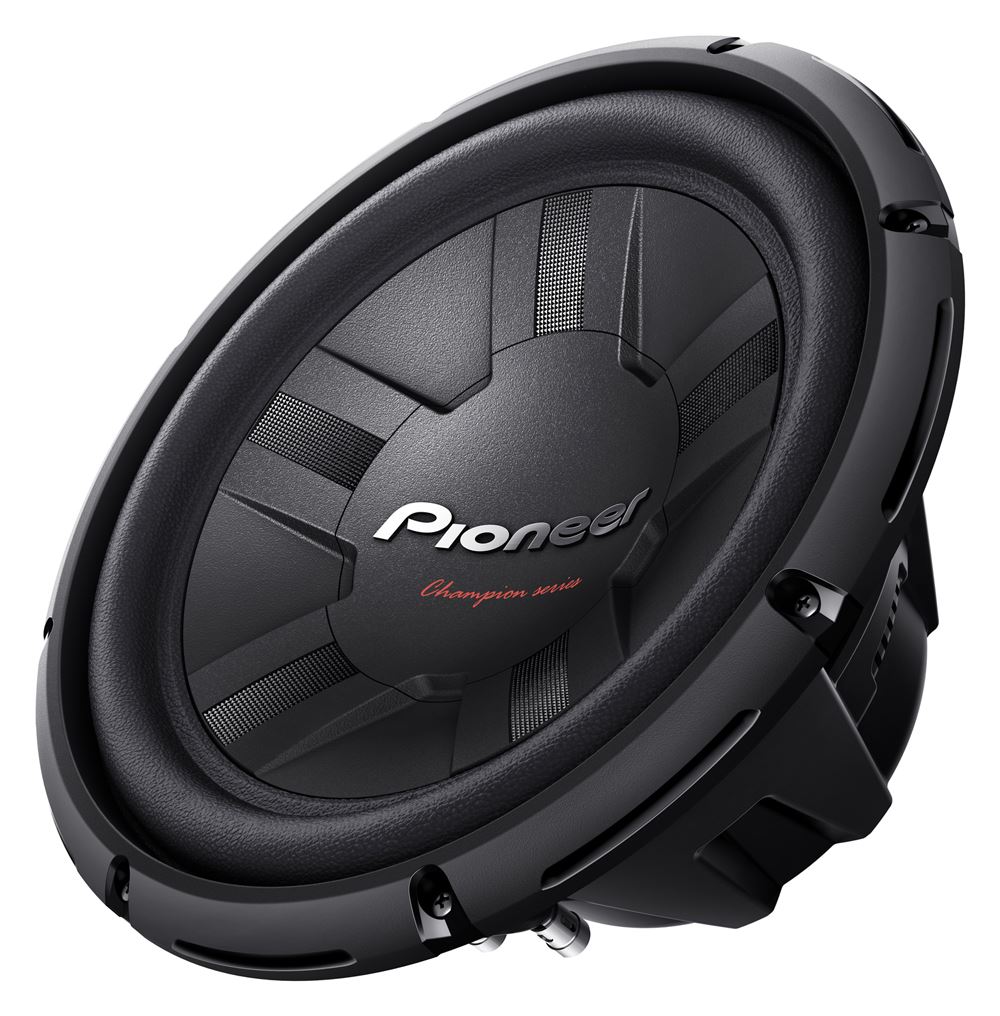

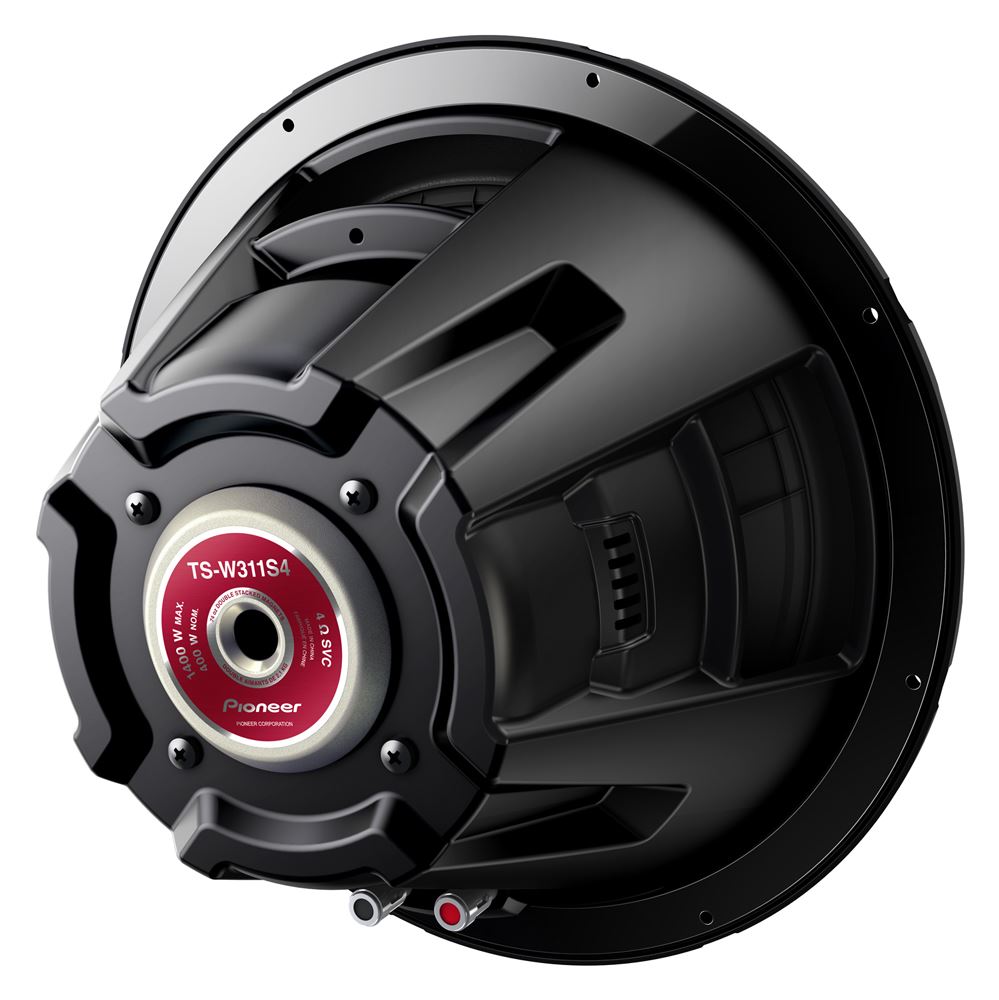

30cm subwoofer,
1x 4 Ohm kmitací cívka,
výkon 400/1400 Watt,
frekvenční rozsah 20 - 125 Hz,
nejnižší rezonanční frekvence 42Hz,
citlivost 95 dB,
IMPP kompozitní membrána,
uzavřený typ,
rozměry 326,6 x 168,5 mm
montážní otvor 283mm,
montážní hloubka 151mm,
hmotnost 6.1 kg
Elektro akustické parametry:
| Nom. Dia.(In) |
30 |
| Qts |
0.79 |
| Qms |
14.96 |
| Qes |
0.84 |
| Fs [Hz] |
42 |
| Vas [l] |
37.5 |
| Vas [ft3] |
1.32 |
| Vd [l] |
0.42 |
| Vd [ft3] |
1.32 |
| Sd [m2] |
0.0147 |
| Sd [ft2] |
0.052 |
| Revc [O] |
3 |
| Levc [mH] (2000Hz) |
2.87 |
| Xmax [mm] |
8 |
| Xmax [in] |
0.3 |
| Zmax [O] |
47.27 |
| BI [Tm] |
13 |
| Rms[Ns/m] |
2.88 |
| Mms [g] |
164 |
| Cms [m/N] |
8,7 x 10-5 |
| Mg.Wt.[g] |
2100 |
| Flux Density [Gauss] |
6926 |
| Hag [mm] |
10 |
| Hag [In] |
0.39 |
| Hvc [mm] |
26 |
| Hvc [In] |
1.02 |
| VC.Diameter [mm] |
48 |
| Eff [%] |
0.29 |
| S.P.L. [dB] |
95 |
| R.M.S.Power [W] |
400 |
| M.M.P. [W] |
1400 |
| Sp. Displacement [l] |
1.67 |
| Sp. Displacement [ft3] |
0.059 |
| Recom. Enclosure [l] |
35.38 |
| Recom. Enclosure [ft3] |
1.25 |
| F0 (in Cabinet) |
55.7 |
| Q0 (in Cabinet) |
1.09 |
cena za kus
